Riello UPS Multi Sentry

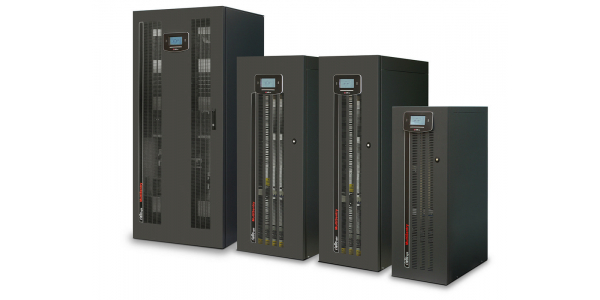

The Riello UPS Multi Sentry Range is a pair of UPS; 160kVA & 200 kVA designed for sites that have limited power capacity or problems with harmonics. The Riello UPS Multi Sentry Range is three-phase and proved up to 96.5% efficiency. The online double conversion system is one of the best uninterruptible power supplies for powering capacitive, high-density loads like in blade servers. 10-120kva Multi Sentry UPS (Uninterruptible Power Supplies) has been replaced with the Riello UPS Sentryum.

The Riello UPS Multi Sentry has a fully controlled IGBT rectifier to minimize the impact on the grid. It is controlled by a Digital Signal Processor (DSP) microprocessor, to provide maximum protection to the powered loads with no impact on supported equipment.

Product Features:

Operating efficiency up to 96.5%
One of the smallest footprints in its category
Compatible with single-phase or three-phase mains supply
Suitable for powering capacitive, high-density loads such as blade servers

Suitable for:

Data Centres
Telecommunications
Light Industrial Applications
Networks & Servers

For larger installations, up to six Riello UPS Multi Sentry units can be paralleled together in either capacity (N) or redundant (N+) configuration because it is a closed loop system, protection continues even if the connection cables are interrupted.

Battery reliability is improved by a high-frequency charger, which reduces damaging ripple current, and temperature compensation that minimises the risk of overheating. The runtimes can be extended by installing larger battery cabinets.

The Riello UPS Multi Sentry easily integrates with Riello UPS’s wide range of advanced communications software such as PowerShield3, which allows for the safe and easy management and shutdown of all connected equipment.

If you need advice find a Riello UPS Multi Sentry to match your requirements why not contact us or fill in the form to the above.

Outstanding performance and efficiency

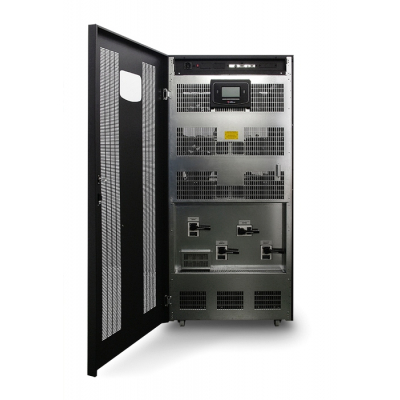

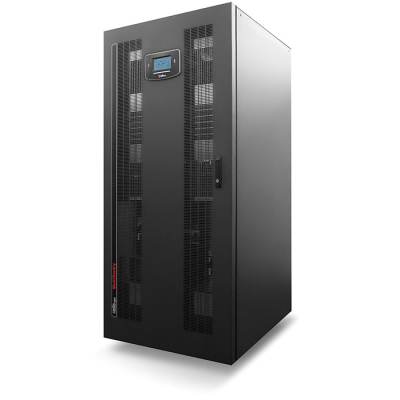

Multi Sentry (MST) is a transformer-free UPS designed to handle capacitive loads without any reduction in active power, making it ideal for data centres or mission-critical telecommunications and IT networks.

Space-Saving Design

MST enjoys one of the most compact footprints in its category, making it a winning choice if you’ve got restricted space or under commercial pressure to optimise your floor space. Delivers high efficiency of 96.5% and near unity power factor.

Scalable Solution

Parallel a maximum of 8 MSTs together to scale up your power or build in redundancy (N+1). Parallel configurations run on a closed-loop system, guaranteeing continuous operation even if there’s an interruption to the connection cable.

If you need help to find a Riello UPS Multi Sentry your requirements, contact us or fill in the form to the right.
